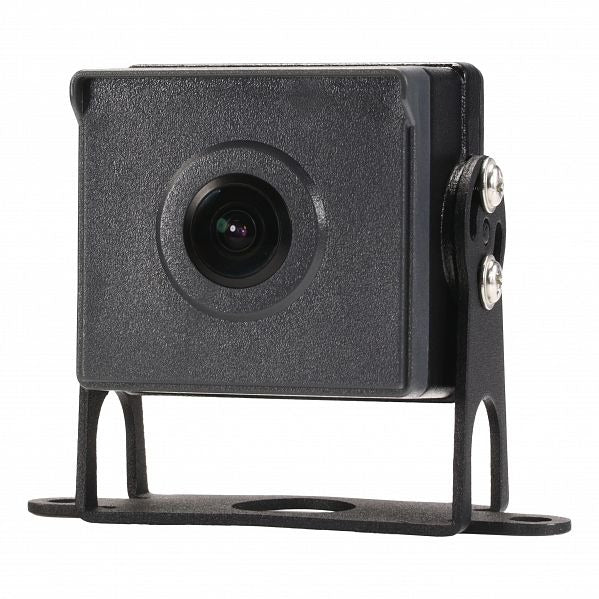

Heavy-Duty AHD 1080P Rear Radar Camera
Introducing the Aerpro AVC13 AHD 1080P Heavy Duty Radar Camera, a commercial-grade camera from the Aerpro Advanced Safety Vision Systems range. Designed to deliver exceptional clarity and reliability for vehicle safety and surveillance, this rugged camera features advanced AHD (Analogue High Definition) technology, providing high-definition visuals that significantly enhance visibility and situational awareness. With the latest in 10 Ghz Radar Object Detection, the AVC13 AHD 1080P Heavy Duty Radar Camera has the ability to detect static or moving objects up to 3 metres away and will produce an alarm tone on the included speaker if an object is entering your reversing path. This object detection radar alarm will only occur whilst "triggered" which is normally utilised when the vehicle is in reverse. The AVC13 will also produce a visual effect on the compatible monitor in the event of object detection. The AVC13's universal surface mount adjustable u-bracket allows flexible positioning anywhere on the vehicle, optimising the field of view to suit diverse applications. Capture a wide field of vision with a 170-degree diagonal lens angle, ensuring comprehensive coverage of vehicle surroundings. Built to withstand challenging environments, the AVC13 is IP69K rated for superior water and dust protection. Additionally, the PCB is completely sealed by an encapsulation process which provides the maximum amount of protection, preventing any external substances from reaching the sensitive equipment, and ensuring reliable performance even in harsh conditions. Compatible with 12V or 24V systems, the AVC13 is suitable for a wide range of vehicles, including cars, 4x4s, vans, motorhomes, buses, trucks, semi-trailers, trailers, caravans, horse floats, forklifts, agricultural vehicles, heavy machinery, tractors and more. Equipped with an ultra-low light sensor, delivering clear imaging in low-light conditions without the need for infrared lights. The camera utilises a secure 4-pin wired connection for stable, weatherproof connectivity. Backed by our industry-leading 5-year warranty, the Aerpro AVC13 AHD 1080P Heavy Duty Radar Camera combines cutting-edge technology with reliability and durability. Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.
Additional Information: This is a camera only, monitors and camera cables are sold separately.
Key Features
- 1080P AHD (Analogue High Definition): Experience exceptional clarity and detail with advanced AHD technology, providing high-resolution images for enhanced visibility
- 10 Ghz Radar Object Detection: Provides Audio and Visual alerts for enhanced road safety by detecting static or moving objects up to 3 metres away.
- Universal Surface Mount: The adjustable u-bracket enables flexible positioning anywhere on the vehicle, optimising the field of view
- 170 Degree Lens Angle: Capture a wide field of view, ensuring comprehensive coverage of the vehicle surroundings
- IP69K Rated: Benefit from superior water and dust protection, ensuring durability and weather resistance in challenging environments
- PCB Encapsulation: Provides robust protection against environmental factors, mechanical stresses, and moisture ingress, enhancing the durability and longevity of the camera
- 12/24V DC Compatibility: Operates seamlessly on 12V or 24V systems, suitable for a wide range of vehicles
- Secure 4-Pin Wired Connection: Utilises a reliable 4-pin camera connector for a stable, secure, and weatherproof connection
- Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind
Specifications:
- Mounting Type: Side Mount
- Radar Object Detection: 3 Metres
- Radar Range Accuracy: 10cm
- Viewing Type: Reverse
- Lens Angle Degree: \nHorizontal: 150 \nVertical Angle: 85 \nDiagonal: 170
- Image Sensor: CMOS
- Resolution: 1080P AHD
- Signal System: PAL
- IP Rating: IP69K
- Vibration Rating: 8G
- Voltage: 12/24V
- Minimum Illumination: 0.1 Lux
- Number of IR LED's: 0
- Built-In Microphone: No
- Connection Type: 4 Pin
- Cable Length: 50cm
- Dimensions:71 x 59 x 42mm (Including Bracket) 47 x 41 x 42mm (Excluding Bracket)
- Wired or Wireless: Wired
- Weight: 0.77kg
What's in the box:
- 1 x AHD 1080P Radar Camera
- 1 x 50cm Camera Cable
- 1 x Radar Buzzer Speaker
- 1 x U-Bracket Camera Mount
